Technical Specifications

• Advantages
• Applications
• Tech parameters

Corrosion Resistant
Resistant to most chemicals, PVC is typically not affected by corrosive soils.And the conduit can be buried in concrete.
Non-conductive
Good insulation, able to resist AC2000V voltage and insulation resistance more than 1x10 Ω.
Self-Extinguishing
Properties make PVC fire resistant.
Impact Resistant
Tough, durable, with high tensile strength, yet easy to install and can be bent by spring under normal temperature.
Attracting appearance
Even color, good appearance, suitable for indoor installation.

RIFENG PVC Conduit pipes in accordance with standard IEC-61386.

​​​​​​​

Nominal size		16x1.3	20x1.5	25x1.6	32x1.8
Outside diameter	mm	16	20	25	32
Tolerance of outer diameter (mm)	Min	15.75	19.75	24.75	24.95
	Max	15.95	19.95	31.75	31.95
Wall thickness	mm	1.3	1.5	1.6	1.8
Wall thickness uniformity		-2.06≤△A≤+0.26
Tolerance of wall thickness (mm)	Min	1.2	1.4	1.55	1.7
	Max	1.4	1.55	1.75	1.9
Exterior		Conduit shall be smooth and free of cracks, ridges or burrs.
		Do not damage the wires during installation.
Storage temperature		Not less than -5°C/23°F
Installation temperature		Not less than -5°C/23°F
Long-term working temp.		-5°C/23°F ~ 60°C/140°F
Flame retardant performance		Self-extinguishes in less than 30 seconds after ignition
		Oxygen index ≧32%
Insulation performance		No breakdown in AC2000V 50 Hz within 15 minutes.
		Insulation resistance≥100MΩ
Compression resistance		Load 1min, ≤25%
		Unloading 1min, ≤10%

Product Overview

• PVC Conduit pipe
• Fittings
• Tools & Accessories

•

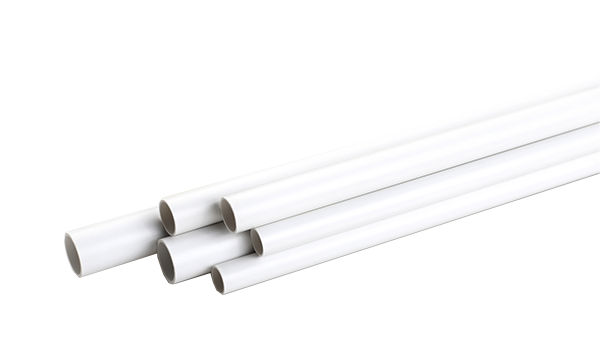

  Conduit pipe GY.205


  Conduit pipe GY.305


  Conduit pipe GY.405
•

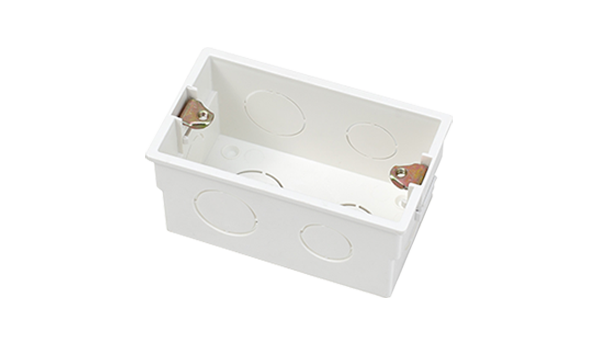

  PVC concealed box

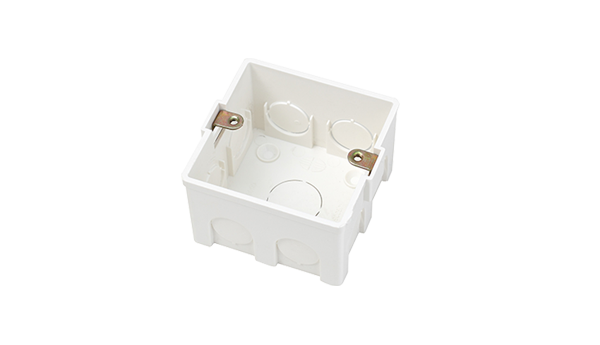

  Concealed gang box

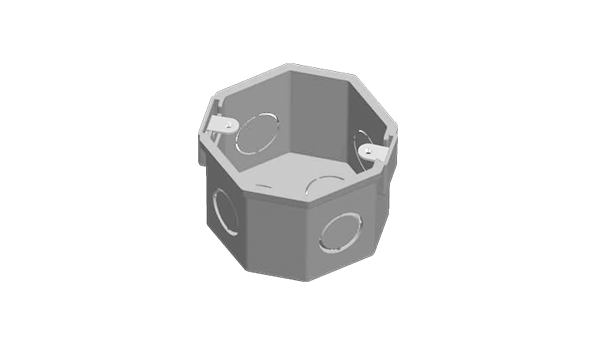

  Concealed octagonal gang box

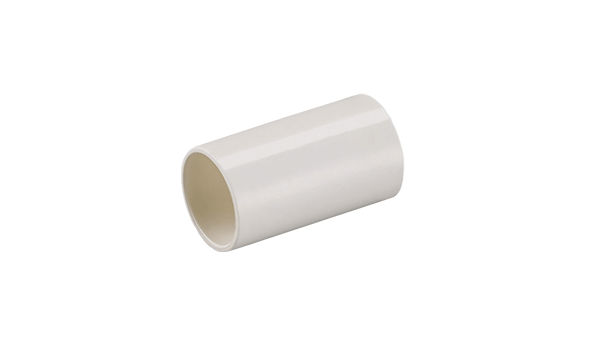

  Coupling

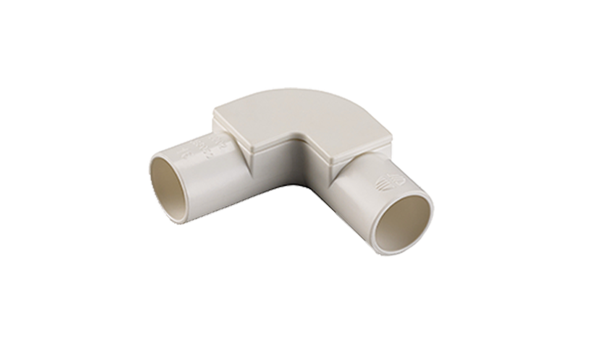

  Elbow with cover
•

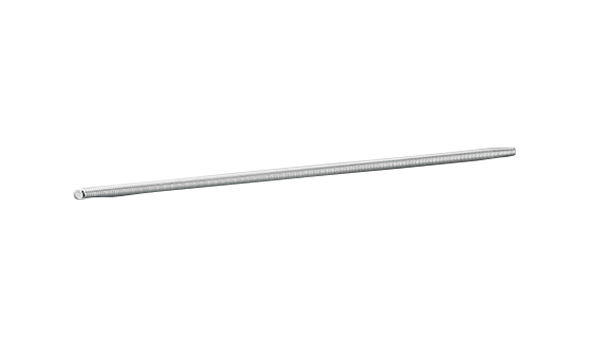

  Bending spring

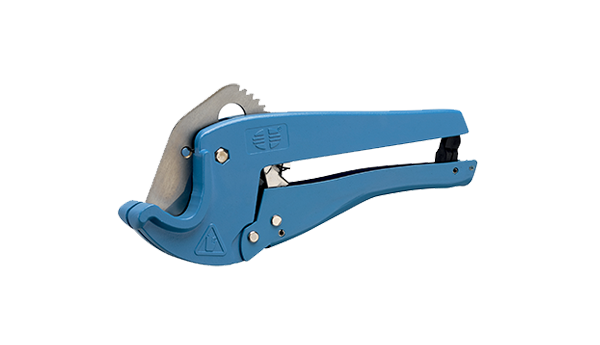

  Pipe cutter

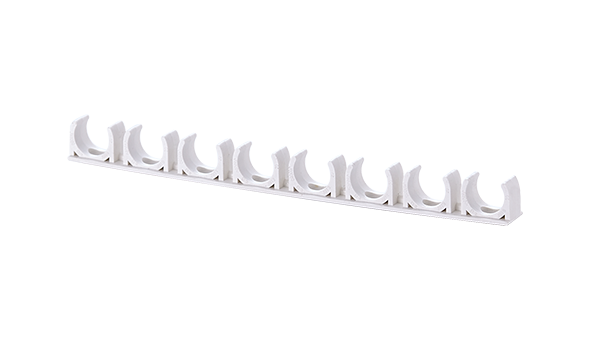

  Row clip
